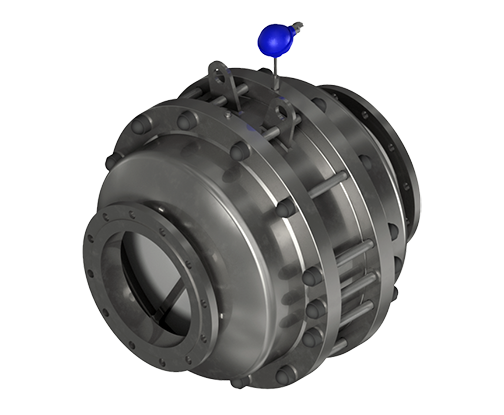

Model 938-V Inline Flame Arrester

Model 938-V Inline Flame Arrester

Performance Features

  • USCG-approved in accordance with 33 CFR Part 154 Appendix A
  • Certified to ATEX – Directive 2014/34/EU
  • Flexible seal material choices including FEP, FPM, NBR and others on request

Request a Quote

  • Specification Options
  • Materials
  • Documentation

Protection

  • Group II EPL Ga/Gb device suitable for use with gas/air and vapour air mixtures of inflammable liquids of explosion group IIA/IIB.

Connection Type

  • ANSI Class 150 B16.5
  • EN 1092- PN10
  • ISO 7005 PN10

Other types available upon request

Compliance with Guidelines

  • 33 CFR Part 154 Appendix A
  • ATEX 2014/34/EU
  • EN ISO 80079-36
  • EN ISO 80079-37

Materials of Construction

  Stainless Steel Hastelloy Carbon Steel Other Materials on request
Metal Foil Element ✓ ✓ ✓
Housing of Metal Foil Element ✓ ✓ ✓
Body / Cover ✓   ✓ ✓



Dimensions

DN A ØB C F Weight *
in mm in mm in mm in mm in mm kg
6 150   510   460   420   260 125
8 200   570   580   480   320 195
10 250   780   790   585   425 495
12 300

* Dependent on set pressure

Product Literature

Model 938-V

Installations

938-V – 150.1 to 300.1/4x0.5/0763/D2IIAP1T1
