Description

The BS&B Type IPD Chemical Isolation System provides protection to interconnected equipment in the event of an explosion. Ducting and piping connecting process equipment can propagate an explosion originating within a single piece of equipment. If unprotected, the ducting, piping, as well as all the connected vessels and equipment are at risk. The BS&B Chemical Explosion Isolation System is designed to inject a suppression agent into ducting and piping to interrupt the transport of burning material & quench the flame front.

The industrial process equipment may be protected by one or more of the following techniques:

  • Explosion Venting
  • Explosion Suppression
  • Explosion Containment

In all cases burning material is produced (a lesser amount when using explosion suppression which activates during the early stages of an explosion to extinguish the developing fireball) which will be transported through the open connections in the protected equipment. Both inlets and outlets are at risk; a normal air flow into the protected equipment will be reversed by the force of an explosive event. The IPD Explosion Isolation System is designed to rapidly inject a suppression agent into ducting and piping to extinguish burning material as it is transported.

Applications

BS&B Type IPD Isolation Systems are continuously protecting common industrial process equipment including:
  • Dust Collectors
  • Dryers
  • Blenders
  • Grinders
  • Silos
Industries using BS&B Type IPD isolation equipment include:
  • Food Processing
  • Grain and Feeds
  • Pharmaceutical
  • Chemical
  • Wood

IPD Isolation System - Modular Design

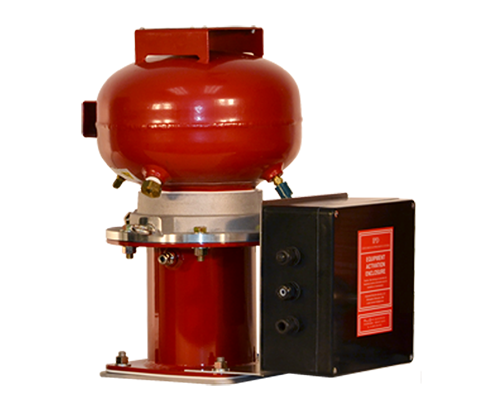

There are four components to the IPD Isolation System (from left to right): the System Monitor, the Explosion Detector, the agent injection Cannon, and the Power Supply. When the Explosion Detector registers the presence of an event it sends an electrical signal directly to the isolation Cannon(s) installed on the equipment ductwork or piping causing the powder suppression agent (foodgrade sodium bicarbonate) to be energized and discharged. The Detector and Cannon are designed for operation in intrinsically safe electrical environments without need for costly explosion proof conduit.

The System Monitor provides electrical power to the Detector and Cannon(s). External relays are activated when the Isolation System operates. These relays enable shut down of the protected equipment to end the supply of combustible material and to generate an alarm. The Power Supply provides connection to standard AC power and battery backup.

Depending upon the application, the isolation Cannon size is selected from standard modules identified as 5, 10, 20, 40 and 60 lb. (2, 4, 8, 16, 24 Kg) capacity. Connection to the ducting or piping requires a simple adapter typically having a 45 degree angle to inject the powder into the flow of burning material.

IPD Isolation System - Activation

The standard IPD Isolation System Detector is pressure driven. Mounted to the equipment in which the explosive event may occur, three pressure sensors respond to the early stages of the pressure wave that precedes the fireball in a deflagration. One of these pressure sensors is set low and provides early warning through the System Monitor of a process condition upset that may cause an unusually high system operating pressure; this is used to prevent system discharge due to non explosive process pressure excursions. When two of the three pressure sensors respond, the Isolation System is activated.

Alternative IPD Isolation System activation can be accommodated. Examples include:

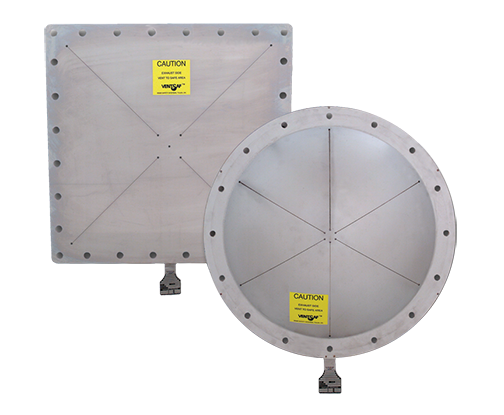

  • Sensors fitted to Explosion Vents such as the type MBS Burst Alert® sensor available with vent panels.
  • Optical sensors (UV, IR or a combination of UV and IR).

When alternative explosion detection means are employed, the Explosion Detector is replaced by a "Detector Interface Module" that receives the sensor output and triggers the isolation Cannon(s) as well as reporting the event to the System Monitor.
